Description
Inbuilt 12-24V DC drivers available.

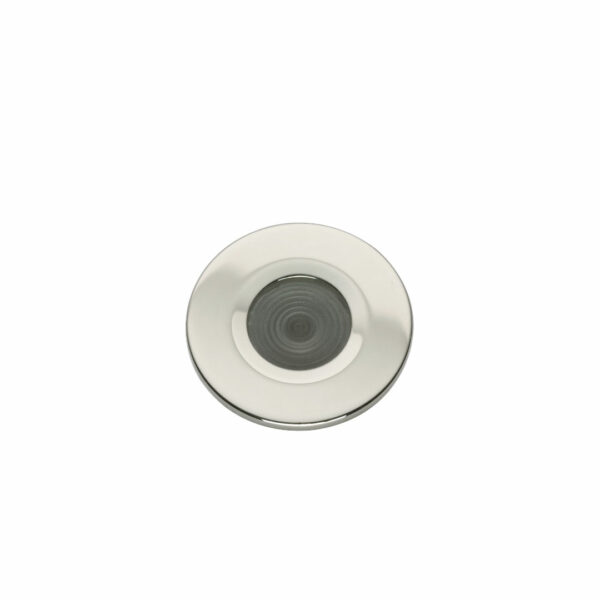

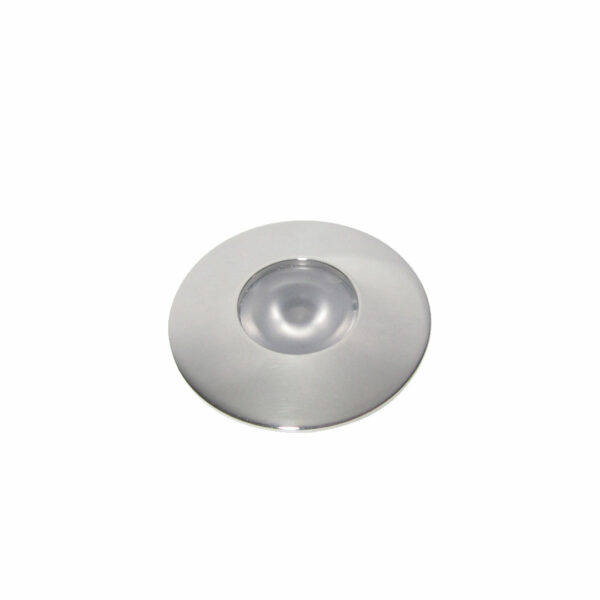

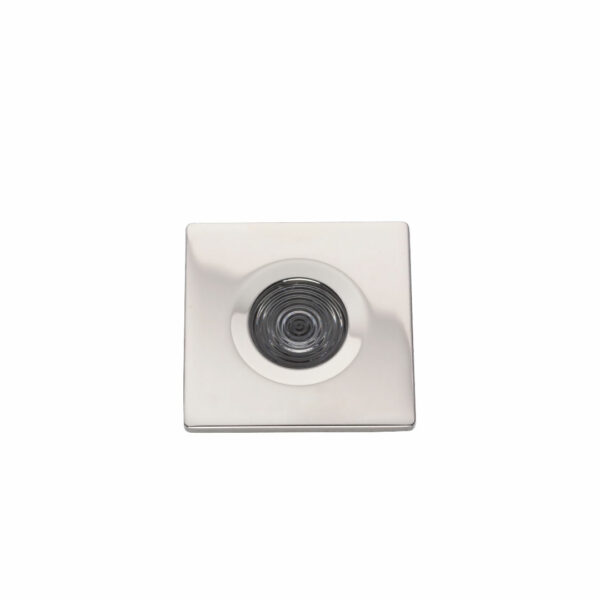

Bezel designs also available in the down light ranges.
If you require bespoke bezels or any alterations to existing designs please contact us.
Coloured LEDs available.
LED Colour: 2700K
LED Power – 1 Watt, 96lm, min 90CRI
Rated Current – 350mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 2700K
LED Power – 3 Watt, 175lm, min 90CRI
Rated Current – 700mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 3000K
LED Power – 1 Watt, 103lm, min 90CRI
Rated Current – 350mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 3000K
LED Power – 3 Watt, 188lm, min 90CRI
Rated Current – 700mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 5000K
LED Power – 1 Watt, 120lm, min 85CRI
Rated Current – 350mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 5000K
LED Power – 3 Watt, 217lm, min 85CRI
Rated Current – 700mA
Forward Voltage – 2-3VDC
(constant current drivers required)
Cable length is 135mm as standard please enquire for custom lengths.
Hole cut out: 26mm standard, 28mm Spring Fit, 28.5mm push fit sleeve
Standard Fit
Fixing method: Suitable adhesive (not supplied).
Spring Fit
Fixing method: Spring clips
Panel thickness: min 5mm – max 15mm
Push Fit
Fixing method: Plastic sleeves are fitted with a suitable adhesive then the fitting is pushed into place when dry.
Please note this product requires an LED driver. Driver not included but these are available to order.
