Description

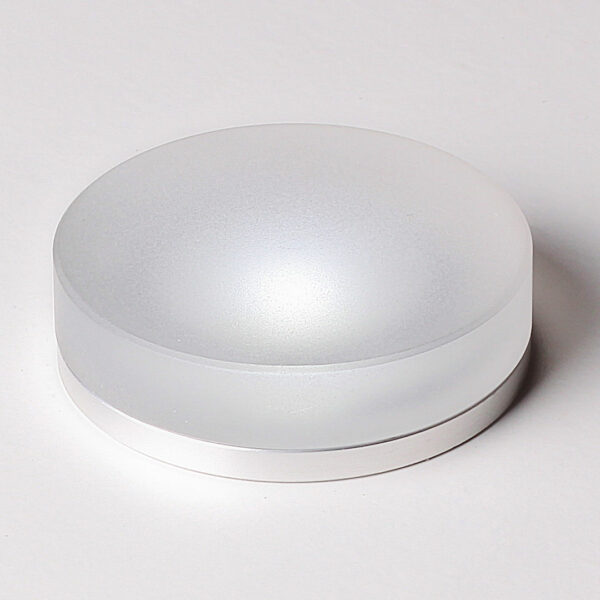

Simple step lights.
With a clear anodized fixing ring.
Inbuilt 12-24V DC drivers available.
Coloured LEDs available.
LED Colour: 2700K
LED Power – 1 Watt, 96lm, min 90CRI
Rated Current – 350mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 2700K
LED Power – 3 Watt, 175lm, min 90CRI
Rated Current – 700mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 3000K
LED Power – 1 Watt, 103lm, min 90CRI
Rated Current – 350mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 3000K
LED Power – 3 Watt, 188lm, min 90CRI
Rated Current – 700mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 5000K
LED Power – 1 Watt, 120lm, min 85CRI
Rated Current – 350mA
Forward Voltage – 2-3VDC
(constant current drivers required)
LED Colour: 5000K
LED Power – 3 Watt, 217lm, min 85CRI
Rated Current – 700mA
Forward Voltage – 2-3VDC
(constant current drivers required)
Cable length is 135mm as standard please enquire for custom lengths.
Hole cut out: 26mm
Fixing method: Fixed with a surface mounted aluminium fixing ring with three M3 mounting holes on a 33.5mm
PCD (fixing screws not included).
We advise the use of a clear sealant behind the bezel lip when used in wet areas.
Please note this product requires an LED driver. Driver not included but these are available to order.
