Description

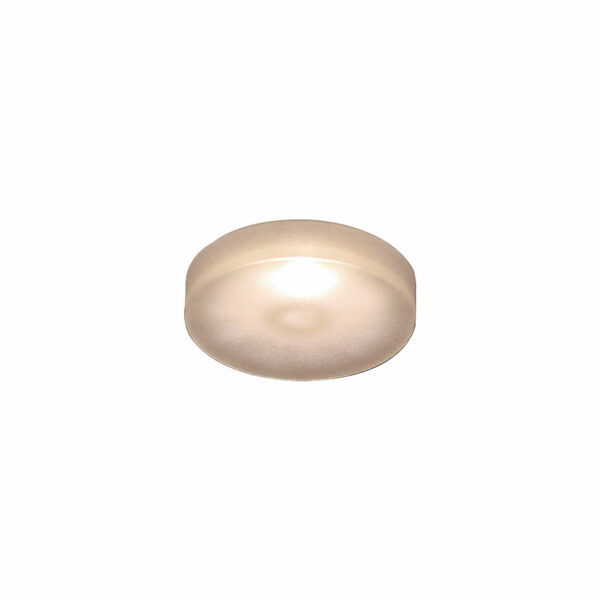

Simple step lights.
With no metal bezels.
Coloured LEDs available.
LED Colour: 2,700K
LED Power – 1 Watt, 96lm, min 90 CRI
Rated Current – 350mA
Forward Voltage – 2-3 VDC
(constant current drivers required)
LED Colour: 3,000K
LED Power – 1 Watt, 103lm, min 90 CRI
Rated Current – 350mA
Forward Voltage – 2-3 VDC
(constant current drivers required)
LED Colour: 5,000K
LED Power – 1 Watt, 120lm,min 85 CRI
Rated Current – 350mA
Forward Voltage – 2-3 VDC
(constant current drivers required)
Cable length is 120mm as standard please enquire for custom lengths.
Hole cute out: 17mm
Fixing method: Fixed with a lock nut from the rear.
Max panel thickness 12mm (DO NOT OVER TIGHTEN).
We advise the use of a clear sealant behind the bezel lip when used outside or in wet areas.
Please note this product requires an LED driver. Driver not included but these are available to order.
